Our Offerings
Boiler Auxiliaries & Accessories
Comprehensive solutions for enhanced boiler performance and efficiency
Key specifications
- Economiser and superheater scope
- Boiler capacity up to 200 TPH
- Deaerator
- Up to 200 TPH, 0.005 PPM residual O2, up to 168°C
- Steam coil air preheater
- 1-10 MKcal/hr
- Dehumidifier
- 1-5 MKcal/hr
- Reciprocating grate
- Up to 60 MKcal/hr
- LP & HP heaters and condensers
- Up to 50 MW plant
- Steam blow-off silencer
- 1 TPH to 50 TPH, up to 110 bar & 540°C
Our comprehensive range of boiler auxiliaries and accessories are designed to enhance efficiency, reduce emissions, and extend equipment life.
Range of Auxiliaries and Accessories
- Superheaters
- Economisers
- Air Preheaters
- Deaerators
- Steam Coil Air Preheaters (SCAPH)
- Fuel Handling and Feeding systems
- Ash Handling systems
- Online Cleaning systems (Soot Blowers etc)
- Air Pollution Control systems (MDC, bag filters, ESP, scrubbers etc)
- Steam Blow-off Silencer
Economizers
New or Replacement of economizers for improving efficiency, increasing steam generation, debottlenecking of existing system, for Boiler capacity up to 200 TPH.
Plain Tube
Horizontal vertical construction for dusty gases with combinations of cross & parallel flow.
Applications: Biomass & fossil fuel fired boiler, Metallurgical, Petrochemical industry off gases.
Fin Tube
Horizontal vertical construction for clean gases with combinations of cross & parallel flow. With helical welded, helical press fitted, square fin, double H fin, Stud constructions.
Applications: Clean Fossil fuel fired boilers, DG Set, Gas Turbine of gases, Fired Heater waste etc.
CI Gill Tube
Horizontal construction for corrosive gases with combinations of cross & parallel flow.
Applications: Sulfurous fuel fired boiler & Waste gases.
Superheaters
New or Replacement of Superheater for improving efficiency, increasing steam generation, debottlenecking & increasing temperatures of existing system, for Boiler capacity up to 200 TPH.
- Single stage
- Two stage
- Three stage
- Four stage

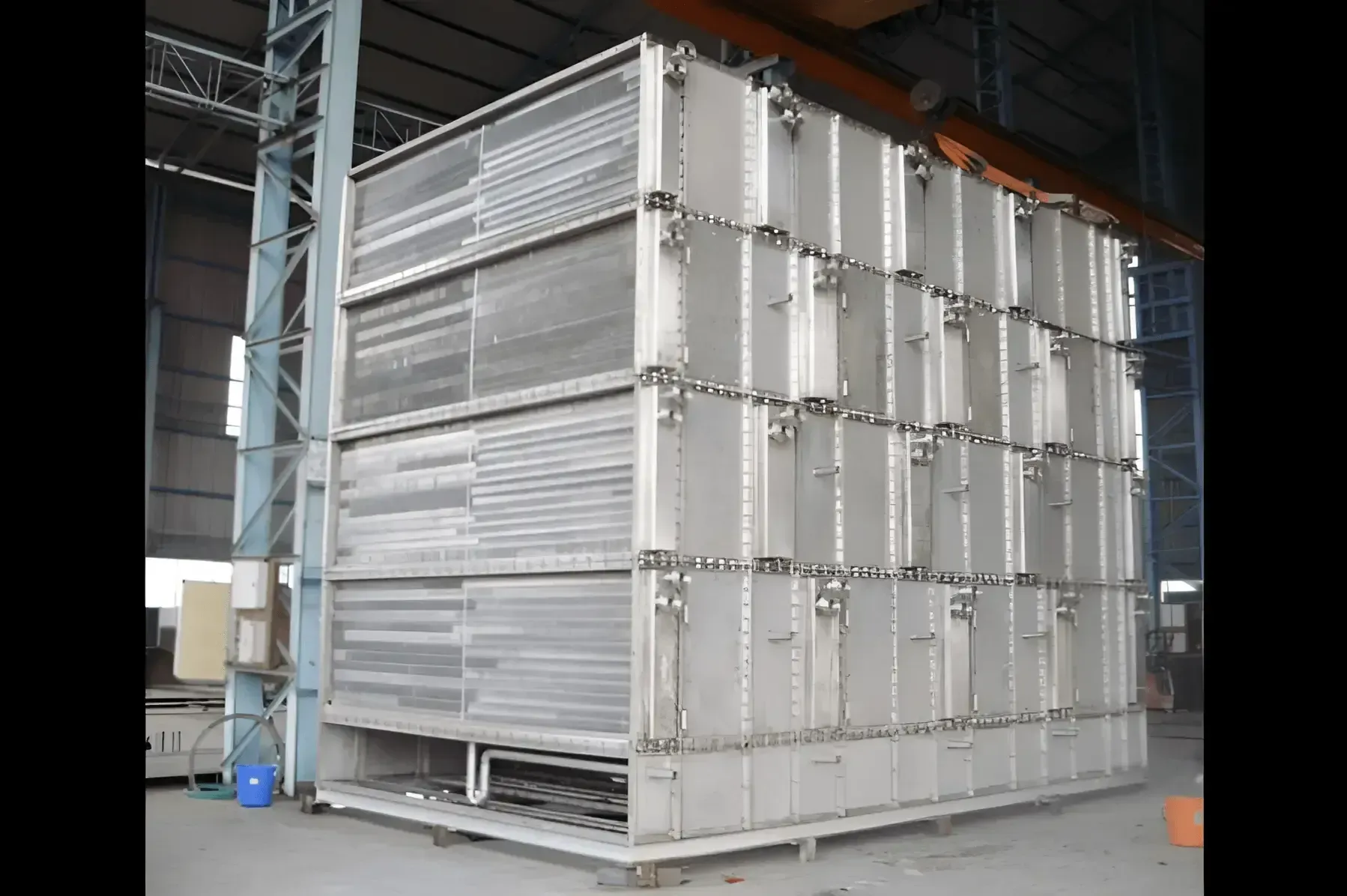

Air Preheaters
New or Replacement of Air Preheater for improving efficiency, increasing steam generation, debottlenecking & increasing temperatures of existing system.
- Plain Tube

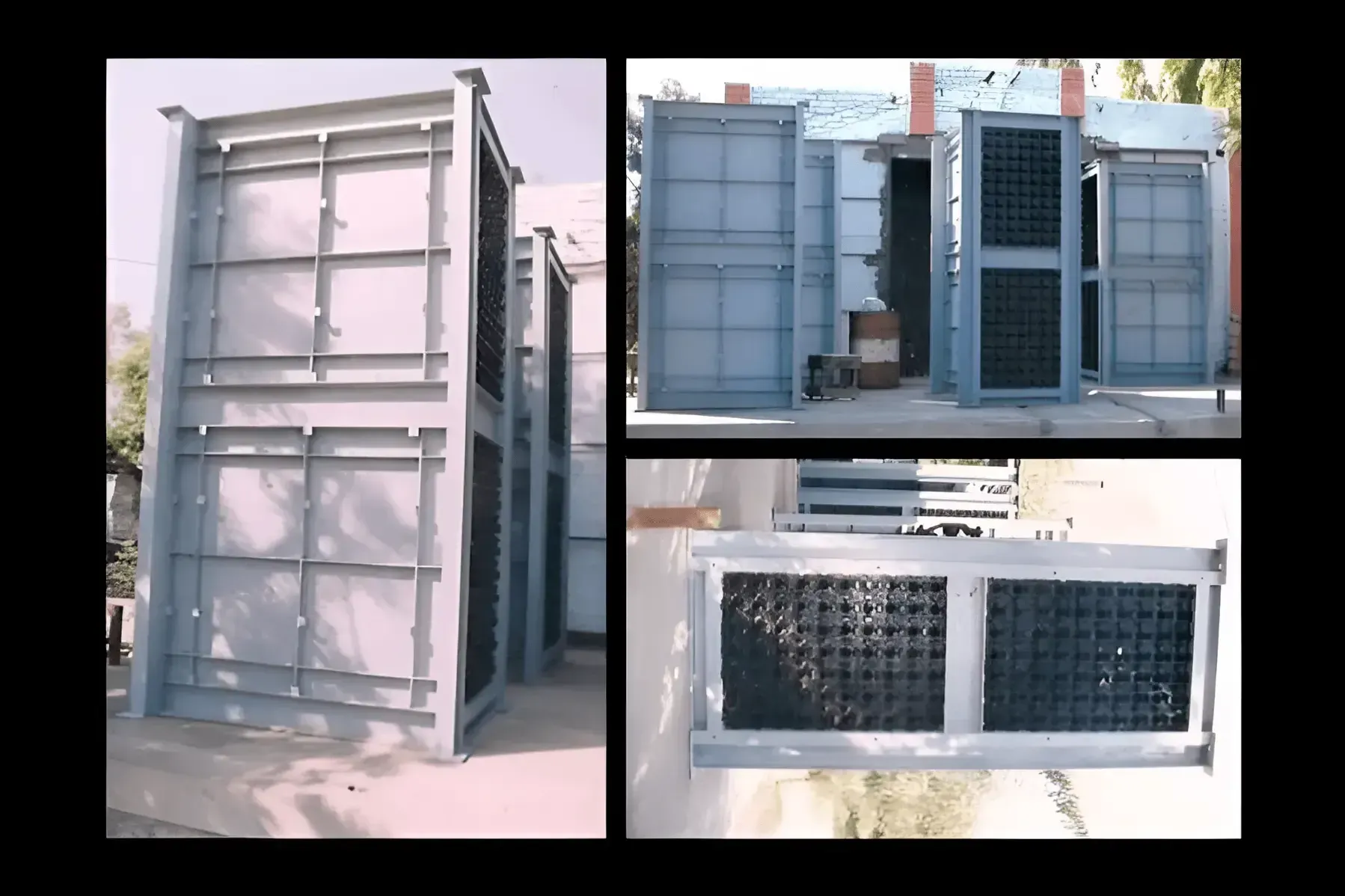

- Cast Iron
- Plate
- Glass
Steam Coil Air Preheater
For preheating of atmospheric air before entering the waste heat air Preheater.
1-10 MKcal/hr
Dehumidifier
To remove moisture from atmospheric air for Food & Pharma industry.
1-5 MKcal/hr

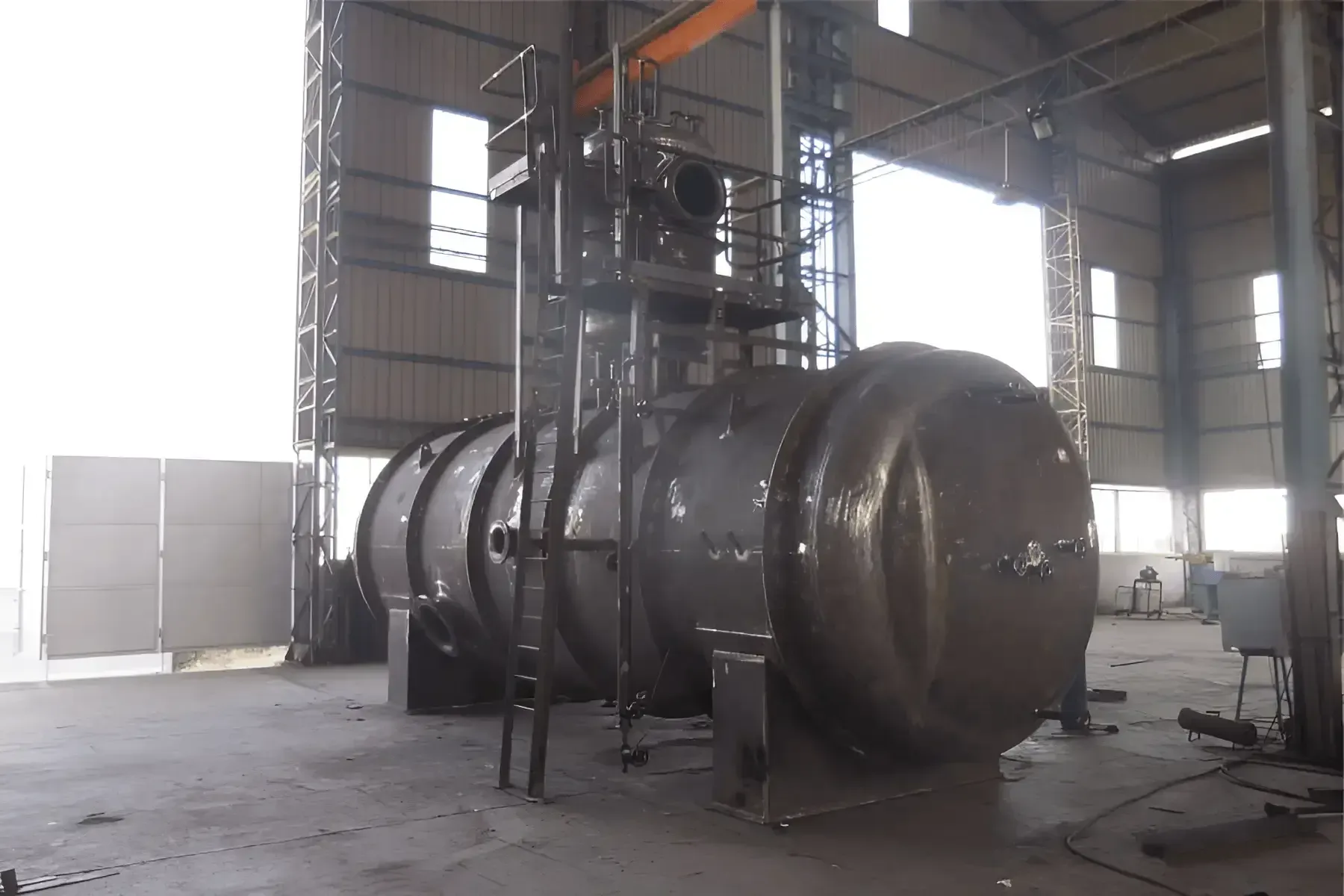

Deaerator
Up to 200 TPH capacity, at 0.005 PPM residual O2 level & up to 168°C.
LP & HP Heaters
Design based on HEI & TEMA (IBR, ASME Sec-VIII) guidelines up to 50 MW plant.
Condensers
Design based on HEI & TEMA (ASME Sec-VIII) guidelines up to 50 MW plant.
Reciprocating Grate
Our own developed Design for Dirtiest fuel (Mustard husk, Paddy straw, EFB etc.)
Up to 60 MKcal/hr

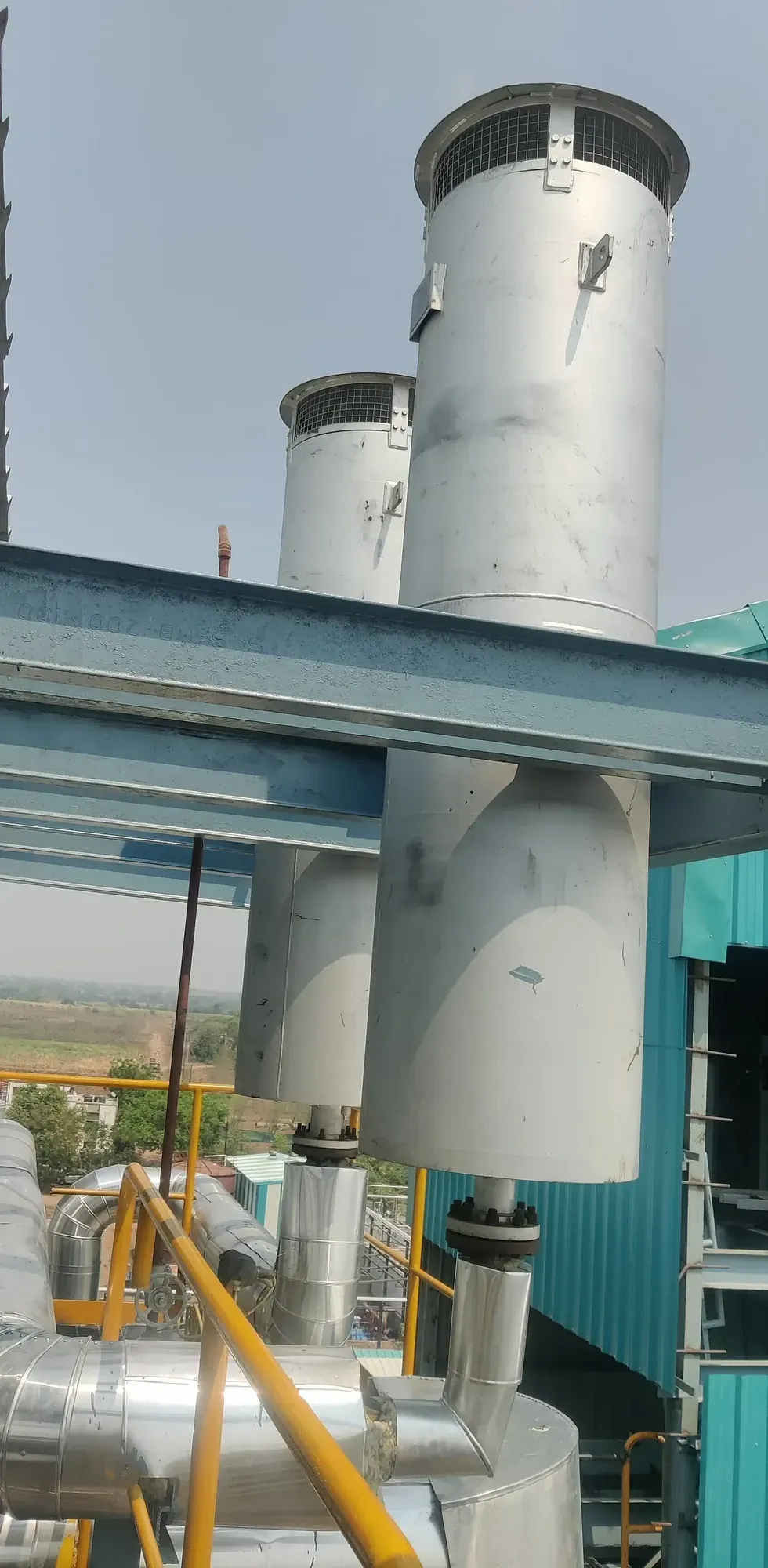

Steam Blow-off Silencer
- Design based on diffusion & absorption principle
- Design from 1 TPH to 50 TPH capacity, up to 110 bar & 540°C
- Satisfy OSHA norms for acceptable noise level (dB)
- On safety valve discharge, Startup vents discharge, blow down vent discharge
Gallery
Next step
Tell us the duty, the fuel and the service conditions.
We will come back with a configuration, the applicable design code and a price.
